1951 USAF Resolution Calculator

View All Technical Tools

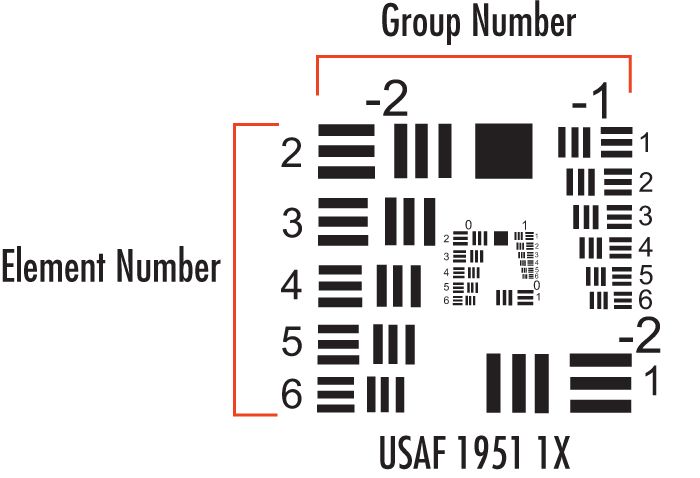

Group Number:
Element Number:

Resolution (lp/mm): --

Focal Length Calculator
Resolution=2(Group Number+Element Number16)
Note:
  • Please use the American standard for number formatting rather than the European standard (i.e. for "two and a half," enter "2.5" rather than "2,5").

Description

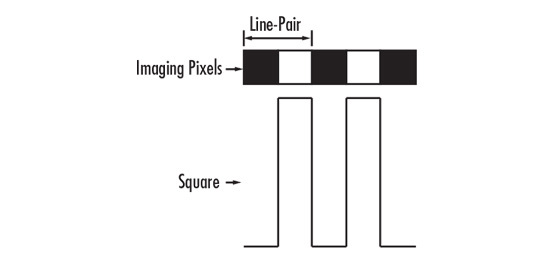

Determine limiting resolution of an optical or imaging application setup. Calculator uses relationship between group number and element number to determine resolution in terms of line pairs per millimeter.
